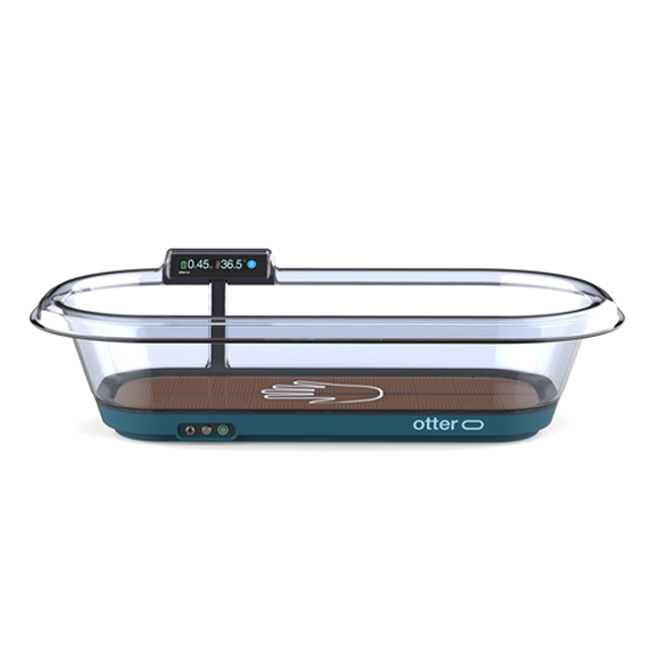

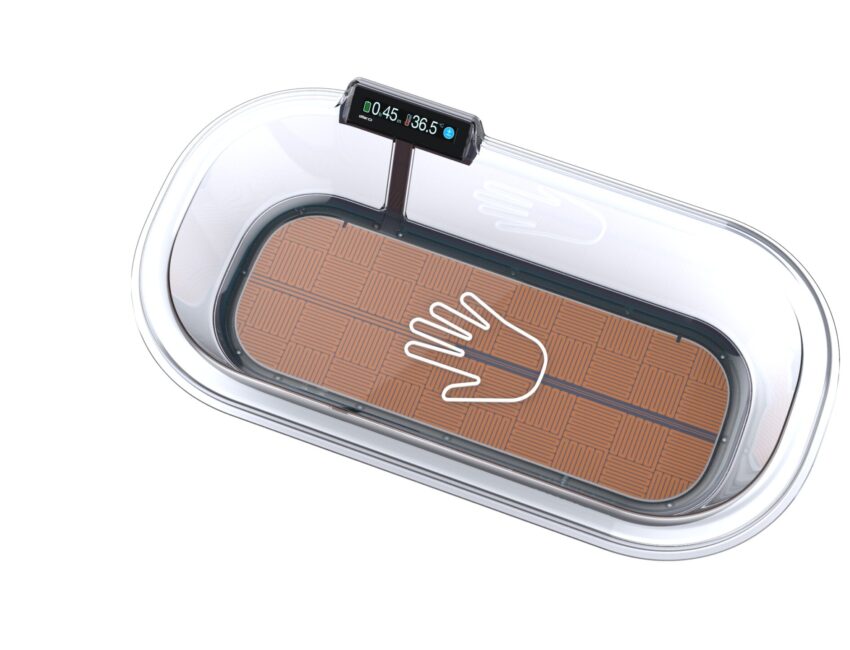

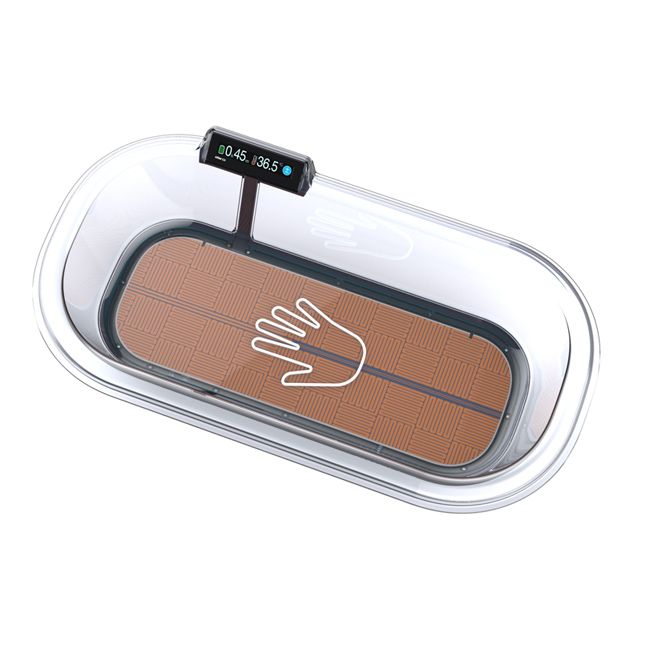

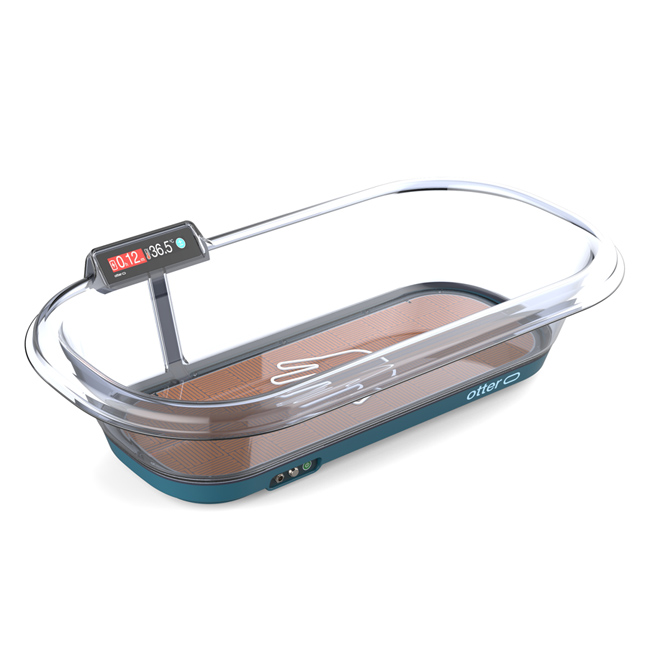

Otter is a newborn conductive warmer designed specifically to allow clinical personnel to keep babies normothermic when the use of more sofisticated therapy is not possible. Unlike the incubators and radiant warmers, the Otter Conductive Warmer provides effective newborn warming that is “easy to use right and hard to use wrong”–in other words the device eliminates the most common sources of product failure.
(pending)
Otter is a reliable device that provides optimal thermal care with low power consumption, high reliability components and long-life heating element.
Otter’s sophisticated technology is coupled with a user-friendly interface and an innovative problem detection system that work together to deliver consistent thermoregulation support.
Otter supports neonates with a unique thermal environment, while giving you ease of access so you can provide the best possible care.
Overview
– 100% reusable and cleanable
– light and portable
– energy efficient
– up to 8 hours battery backup
Temperature Control System
– automatic surface temperature controll
– optional probe for patient skin temperature monitoring
Displays/Indicators

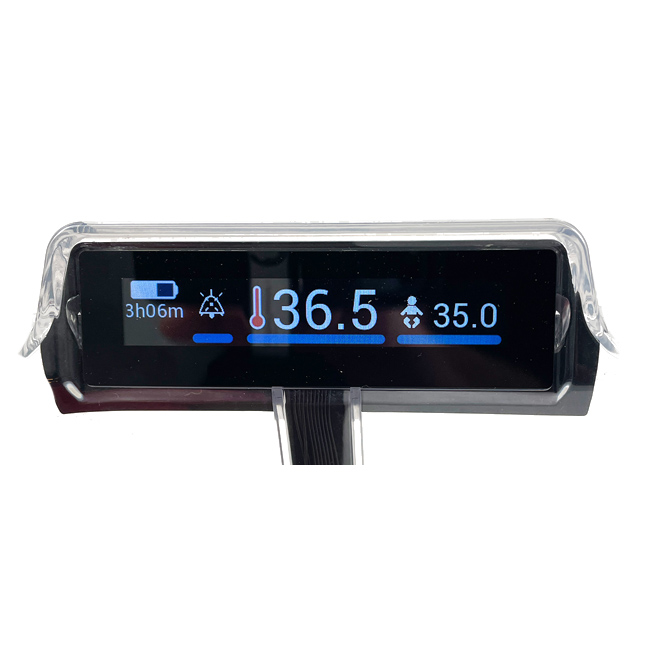

– bright LCD display to monitor patient temperature,
treatment time, total usage time, heater power level and sensor connection
– LCD diplay with diagnostic and troubleshooting information
– total system time counter (lifetime)
– battery status estimator
Safety – Alarms
– Heater element failure
– Sensor failure
– Power failure
For added patient safety, Otter incorporates a full complement of alarms that notify caregivers if the baby’s skin temperature deviates from the set point or the skin sensor falls of the patient.
The intuitive control panel makes sophisticated functions easy-to-use. The large, bright digital display provides all essential information about the patient in an easy-to-read format.
Otter provides quality care at exceptional value. It combines a feature-rich microenvironment with low initial cost, low power consumption and long-life components.
| Dimensions and Weight | Dimensions | 68 cm x 36 cm x 19 cm |
| Weight without batteries | 3kg | |
| Weight with batteries | 5kg | |
| Shipping Weight | 10kg | |
| Shipping dimensions | 70 cm x 43 cm x 25 cm | |
| Performance Specifications | Heating element rating power | 50 W |
| Effective surface area | 48 cm x 18 cm | |
| Surface temperature control | range: 35 °C - 38 °C in steps of 0.5 °C | |
| uniformity: < 1 °C | ||
| accuracy: ±1 °C | ||
| Surface temperature measurement | range: 15 °C - 42 °C | |
| accuracy: 0.5 °C | ||
| resolution: 0.1 °C | ||
| Skin temperature measurement | range: 10 °C - 50 °C | |
| accuracy: 0.1 °C (in 34 °C – 37.5 °C range) | ||
| resolution: 0.1 °C | ||
| Environmental Specifications | Operating Temperature | 15°C - 35°C |
| Electrical Specifications | Voltage | 100-240V AC |
| Frequency | 47 - 63Hz | |
| Power consumption | 120W maximum | |
| Battery (internal) | Li-ion |
(Subject to MTTS policy)
| Ordering Information | Otter Unit | OTT-1000 | Main Unit | |
| Mains Power Cable | EU Standard | ID 551 | ||
| US/VN Standard | ID 552 | |||
| UK Standard | ID 553 | |||
| AUS Standard | ID 1313 | |||
| Accessories | Skin Sensor | ID 1290 | ||
| Sticky tape for Skin Sensor | ID 1315 | Box of 100 pieces | ||
| Skin Sensor Clip | ID 2130 | |||
| User Manual | EN | English | ||
| Quick Reference Guide | EN | English |
