Wallaby Warmer

A warm, comfortable and developmentally supportive environment for newborn and paediatric patients.

MTTS Product Line

As they leave the warmth of the mother’s womb for the much cooler environment of the delivery room, babies with limited metabolic capacity due to illness, prematurity or low birthweight are susceptible to experiencing thermal instability . MTTS provides a technologically advanced Warmer to restore, stabilize, and control the temperature of the newborn baby.

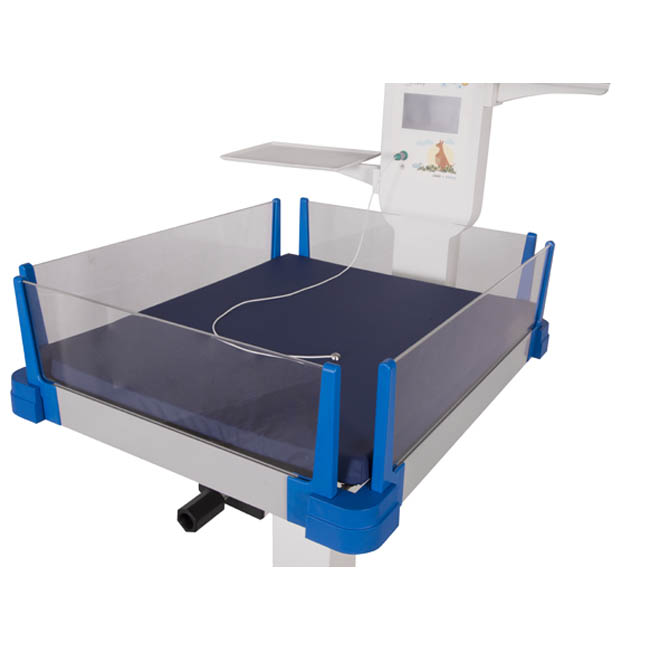

Focusing on enhanced functionality and clinical performance, the Warmer features safe, automatic control of patient temperature with smart problem detection, safety fallback modes, and LCD displays that show set temperature, temperature alarm, treatment time, total usage time, and heater power level. Moreover, the easy-to-open sidewalls provide access to the patient while keeping them warm and create an ideal ergonomic setting where caregivers can work efficiently.

CE Mark with Number


Quality


The Warmer is a reliable device that provides optimal thermal care with low power consumption, high reliability components and long-life heating element.

Innovation


The Warmer’s sophisticated technology is coupled with a user-friendly interface and an innovative problem detection system that work together to deliver consistent thermoregulation support.

Care


The Warmer supports premature and sick neonates with a unique thermal environment, while giving you ease of access so you can provide the best possible care.

Key Features


Overall
REMOTE TEMPERATURE and object sensing providing full patient protection from overheat if standard skin  sensor is disconnected or faulty
Angle adjusted bed (up to 12 degrees)

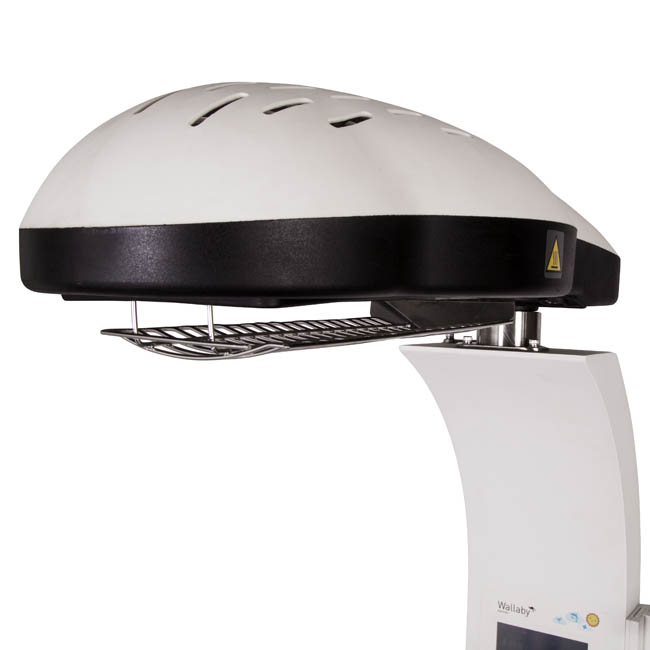

Adjustable overhead unit and tray for X-ray procedures

Temperature Control System
Automatic (servo controlled)
Manual
Prewarm

Displays/Indicators
Bright LCD display to monitor patient temperature, treatment time, total usage time, heater power level and sensor connection
Integrated APGAR score timer
LCD diplay with diagnostic and troubleshooting information.
Total system time counter (lifetime)

Safety – Alarms
Heater element failure
Sensor failure
Power failure
Sensor off the patient

Accessories

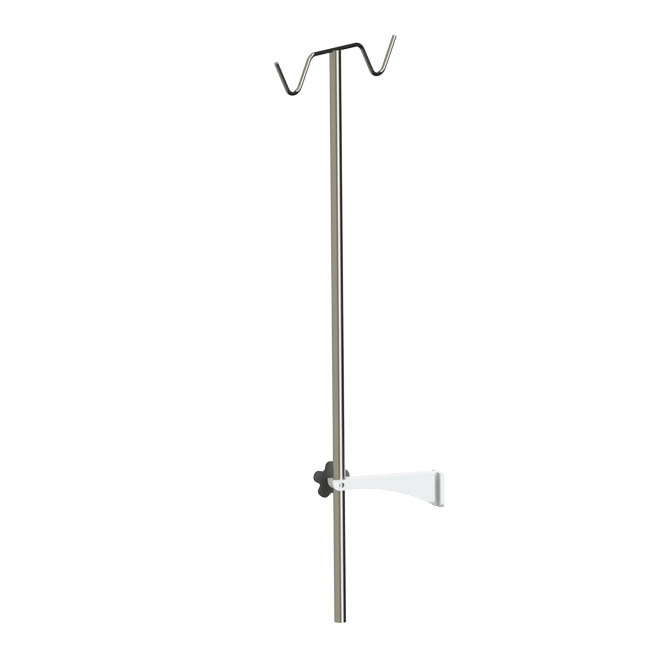

IV Pole
Storage Shelf

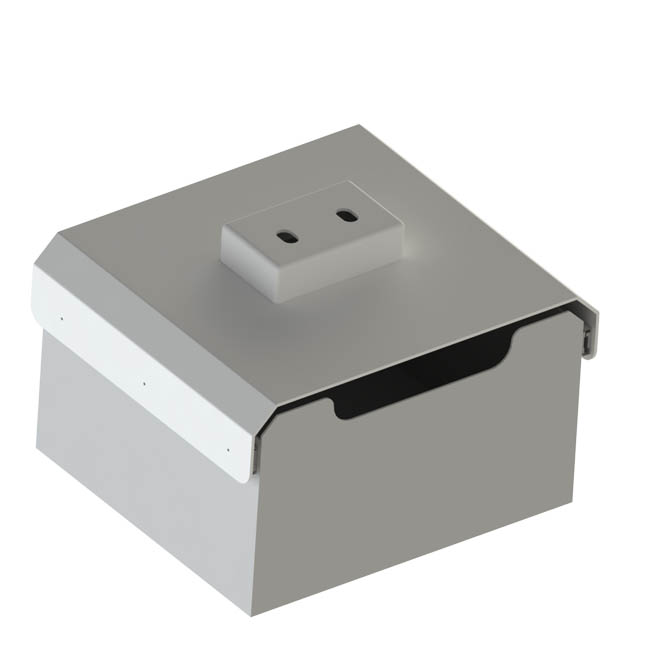

Storage Drawer

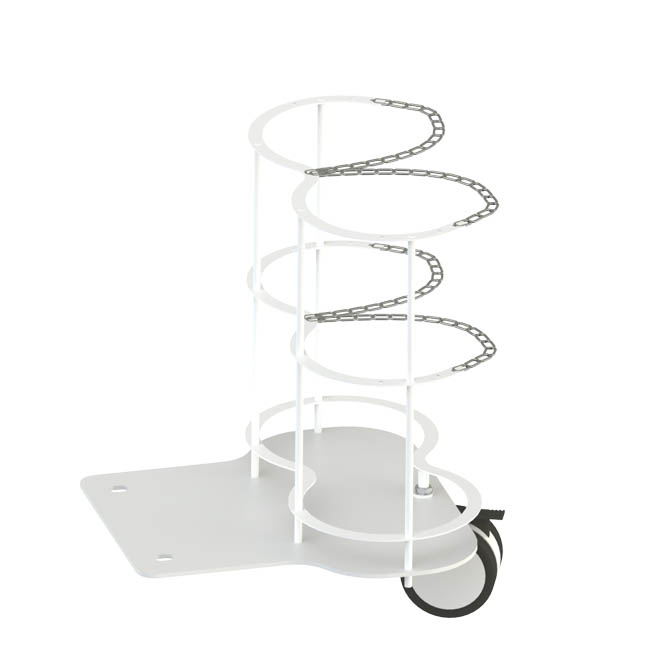

Cylinders holder

Wallaby-1-650

Effective


For added patient safety, the Warmer incorporates a full complement of alarms that notify caregivers if the baby’s skin temperature deviates from the set point or the skin sensor falls of the patient.

safe

Compatible


The intuitive control panel makes sophisticated functions easy-to-use. The large, bright digital display provides all essential information about the patient in an easy-to-read format.

costefficient

Cost Efficient


The warmer provides quality care at exceptional value. It combines a feature-rich microenvironment with low initial cost, low power consumption and long-life components.

Technical Specifications


Dimensions and WeightDimensions110 cm x 78 cm x 174 cm
Weight64kg
Shipping Weight78kg
Performance SpecificationsApplicationTreatment of neonatal and pediatric patients to
prevent hypothermia.
Patient Temperature Range34.0°C - 37.5°C
Temperature measurement10.0°C - 50.0°C
Sensor accuracy+/- 0.1°C
Standard Warranty1 year
Heater Element TypeRadiant
Power650W
Procedure Lamp TypeLED
Power3W
Environmental SpecificationsOperating Temperature18°C - 35°C
Power SupplyVoltage220-240V AC
Frequency47 - 63Hz

Standard warranty 1 year.

(Subject to MTTS policy)

Ordering Information and Servicing

Ordering InformationWarmer UnitWLB-1000Main Unit
Mains Power CableEU StandardCOR-10001
US/VN StandardCOR-10002
UK StandardCOR-10003
AUS StandardCOR-10004
India StandardCOR-10005
AccessoriesSkin SensorWLB-1011
Sticky tape for Skin SensorWLB-1013Box of 100 pieces
Bed MattressWLB-1020
IV PoleWLB-1030
Storage ShelfWLB-1040
Storage DrawerWLB-1050
Cylinders HolderWLB-1060
Baby BonnetWLB-1070
Documents HolderWLB-1080
User ManualENWLB-1091English
Assembly InstructionsENWLB-1092English
Quick Reference GuideENWLB-1093English
Accessories Assembly InstructionsENWLB-1094English
